技术概述 |
规格 |
段数 |
单位 |
减速比 |
HLS245 |
HLS295 |
HLS355 |
HLS410 |
额定扭矩 |
1 |
Nm |
4 |
3493 |
5117 |
9028 |
15600 |
5 |
2464 |
3687 |
6694 |
11400 |
6 |
1680 |
2373 |
4656 |
8000 |
7 |
1453 |
2251 |
2890 |
7000 |
8 |
1020 |
1551 |
1900 |
5000 |
2 |
16 |
5440 |
6500 |
13600 |
21000 |
20 |
5440 |
6500 |
13600 |
21000 |
24 |
4140 |
6500 |
9492 |
21000 |
28 |
3668 |
5812 |
9000 |
11560 |
32 |
2636 |
4080 |
6200 |
7600 |
3 |
64 |
5440 |
8270 |
13600 |
21000 |
80 |
5440 |
8270 |
13600 |
21000 |
100 |
5440 |
8270 |
13600 |
21000 |
120 |
5440 |
8270 |
13600 |
21000 |
140 |
5440 |
8270 |
13600 |
21000 |
160 |
5440 |
8270 |
13600 |
21000 |
192 |
4144 |
6720 |
9492 |
18600 |
最大加速力矩 |
Nm |
1.8倍额定扭矩 |
额定输入转速 |
rpm |
1500 |
1500 |
1500 |
1500 |
1500 |
最大输入转速 |
rpm |
3000 |
3000 |
2000 |
2000 |
2000 |
背隙 |
L |
arcmin |
1 |
5 |
5 |
5 |
5 |
2 |
7 |
7 |
7 |
7 |
3 |
9 |
9 |
9 |
9 |
S |
1 |
7 |
7 |
7 |
7 |
2 |
9 |
9 |
9 |
9 |
3 |
11 |
11 |
11 |
11 |
噪音 |
Db |
1-4 |
70 |
70 |
75 |
75 |
最大径向负载 |
N |
1-4 |
6500 |
9500 |
22000 |
30000 |
最大轴向负载 |
N |
1-4 |
33000 |
50000 |
90000 |
100000 |
效率 |
% |
1 |
97 |
2 |
94 |
3 |
91 |
|
尺寸 |

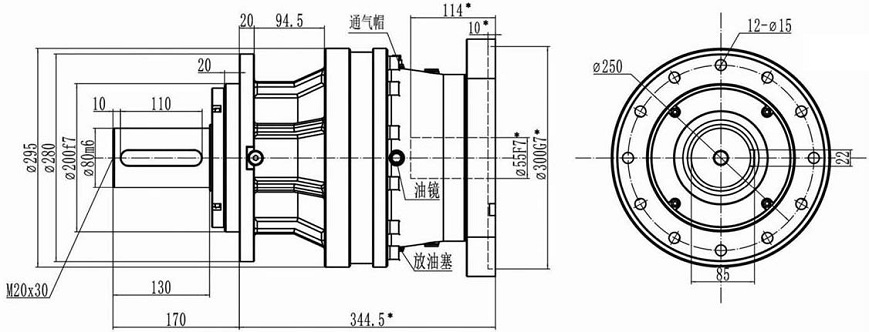

一段
|

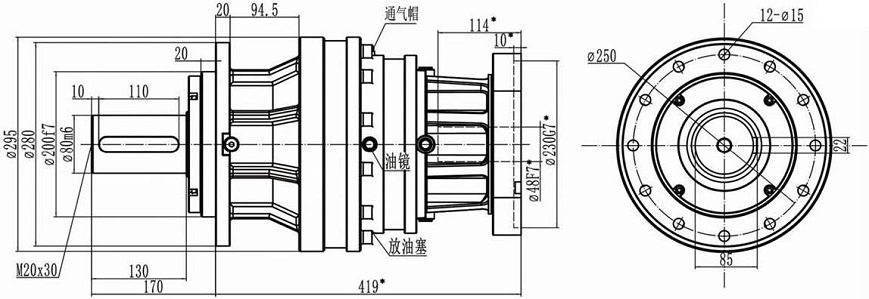

二段
|

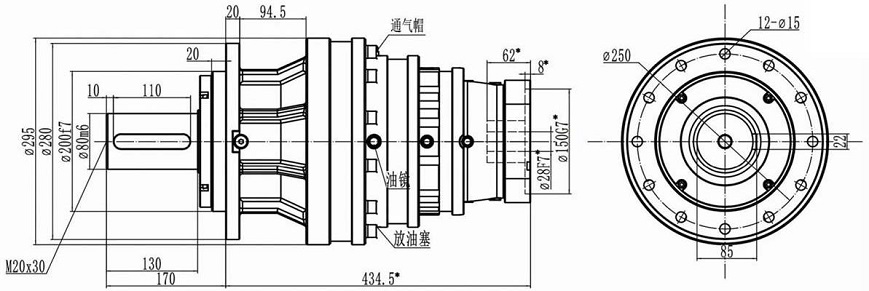

三段
|
|
|
|
