概要 |
PV系列直联行星齿轮减速箱在经济的外壳中实现了功率与多用性的完美组合。这一系列提供了多种选择方案,包括各种输出法兰,涵盖派克的PX, Alpha LP, Neugart PLE, Stober PE 以及标准 NEMA减速机。PV系列包括公制或NEMA外框尺寸,产品尺寸范围从40mm到115mm ,NEMA尺寸范围从NEMA17 到 NEMA42 ,减速比从 3:1 到 100:1。无论您是配套客户,还是寻找有竞争力的替代产品的最终用户,派克的PV系列都能为您提供解决方案。 |
特征 |
标准精度,直联行星减速机
外形尺寸:40 - 115mm/ NEMA17 - NEMA42
减速比:3:1 - 100:1
高扭矩/低齿隙:行星齿轮几何结构
间隙:小于8弧分(标准)
效率:高达96%
静音运行:低于70db
高输入速度:高达8,000 RPM
高的径向负荷能力:圆锥滚子轴承输出
高刚度:积分齿圈和刚性太阳轮
高的齿轮耐磨性:等离子渗氮热处理
有竞争力的选择:五种不同的输出选项
通用安装套件:快速交货和安装更方便
IP64防护等级 |
特点 |
·高径向负载能力:圆锥滚子轴承
·五种不同的输出选项
·安装方式灵活
·耐腐蚀外壳 |
技术概述 |
参数 |
单位 |
减速比 |
PV40/PV17 |
PV60/PV23 |
PV90/PV34 |
PV115/PV42 |
额定输出扭矩 |
Nm |
3 |
- |
12 |
35 |
74 |
4 |
5.9 |
18.9 |
56 |
111 |
5 |
6.2 |
19.6 |
58 |
115 |
7 |
5.5 |
16.7 |
52 |
104 |
10 |
3.5 |
10.6 |
33 |
67 |
12 |
- |
18.2 |
54 |
112 |
15 |
- |
19.4 |
58 |
120 |
16 |
6.5 |
- |
- |
- |
20 |
6.5 |
21.5 |
67 |
136 |
25 |
6.7 |
20 |
63 |
126 |
30 |
- |
22.5 |
71 |
144 |
35 |
6.7 |
- |
- |
- |
40 |
6.5 |
21.5 |
67 |
136 |
50 |
6.7 |
20 |
63 |
126 |
70 |
5.5 |
16.7 |
52 |
104 |
100 |
3.5 |
10.6 |
33 |
67 |
最大加速输出扭矩 |
Nm |
3 |
- |
24 |
70 |
148 |
4/5/12/15 |
11.8 |
36.4 |
108 |
222 |
16/20/25/30/35/40/50 |
11 |
33.4 |
104 |
208 |
7/70 |
7 |
21.2 |
66 |
134 |
10/100 |
13 |
40 |
126 |
252 |
急停输出扭矩 |
Nm |
3/4/5/12/15/16/20/25/30/35/40/50 |
16 |
55 |
170 |
350 |
7/70 |
13.7 |
44 |
137 |
290 |
10/100 |
9.2 |
39 |
122 |
255 |
额定输入速度 |
rpm |
3-100 |
4500 |
4000 |
3500 |
3000 |
最大输入速度 |
rpm |
3-100 |
8000 |
6000 |
6000 |
5000 |
寿命 |
h |
3-100 |
20000 |
标准背隙 |
arcmin |
3-10 |
<15 |
<12 |
<10 |
<8 |
15-100 |
<18 |
<16 |
<14 |
<12 |
额定扭矩效率 |
% |
3-10 |
96 |
15-100 |
94 |
3000rpm时噪音 |
dB |
3-100 |
<60 |
<65 |
<65 |
<70 |
工作温度 |
℃ |
3-100 |
-20至+100 |
润滑 |
- |
3-100 |
免维护 |
安装位置 |
- |
3-100 |
任意 |
旋转方向 |
- |
3-100 |
与输入相同 |
防护等级 |
- |
3-100 |
IP64 |
最大重量 |
kg |
3-10 |
0.6 |
1.2 |
3.2 |
6.8 |
15-100 |
0.9 |
1.6 |
4.3 |
9.7 |
|

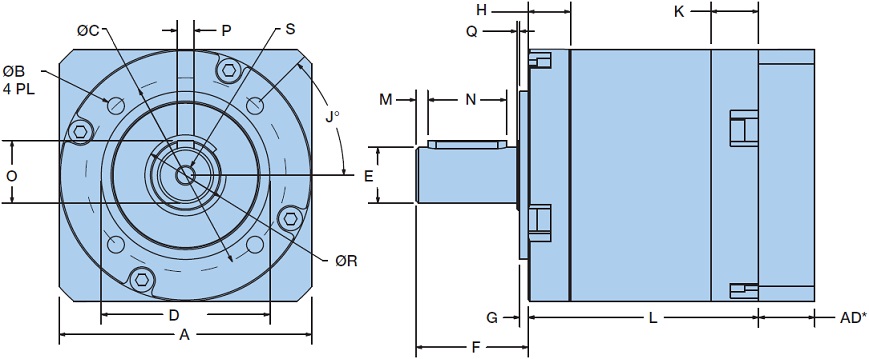

尺寸 |
![](../../img/products/PositioningTransmission/Gearhead/PV-dim.jpg) |
框架 |
A |
B |
C |
D |
E |
F |
G |
H |
J |
K |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
° |
mm |
PV40TN |
43 |
M4x7 |
34 |
26 |
10 |
26 |
1.5 |
10 |
45 |
11 |
PV40TA |
50 |
M4x10 |
44 |
35 |
12 |
25 |
3 |
10 |
90 |
11 |
PV60TN |
62 |
M5x10 |
52 |
40 |
14 |
35 |
2.5 |
12 |
45 |
16 |
PV60TA |
70 |
M5x10 |
62 |
52 |
16 |
36 |
5 |
16 |
90 |
16 |
PV90TN |
90 |
M6x11 |
70 |
60 |
20 |
40 |
3 |
15 |
45 |
17 |
PV90TA |
90 |
M6x12 |
80 |
68 |
22 |
46 |
5 |
18.5 |
90 |
17 |
PV115TA |
115 |
M10x16 |
100 |
80 |
25 |
55 |
4 |
20 |
45 |
23 |
PV115TA |
120 |
M8x20 |
108 |
90 |
32 |
70 |
6 |
28 |
90 |
23 |
|
框架 |
L1 |
L2 |
M |
N |
O |
P |
Q |
R |
S |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
PV40TN |
48.5 |
63 |
3.1 |
16 |
10.2 |
3 |
0.6 |
11.633 |
M3x6 |
PV40TA |
48.5 |
63 |
1.3 |
16 |
13.5 |
4 |
3.5 |
17.831 |
M4x8 |
PV60TN |
63 |
83 |
2.71 |
25 |
16 |
5 |
2.5 |
19.939 |
M5x12 |
PV60TA |
67 |
87 |
2.21 |
25 |
18 |
5 |
3 |
28 |
M5x12 |
PV90TN |
82 |
105.5 |
4.154 |
28 |
22.5 |
6 |
1 |
25 |
M6x12 |
PV90TA |
85.5 |
109 |
4.291 |
28 |
24.5 |
6 |
5 |
38 |
M8x13 |
PV115TA |
102 |
136 |
5.354 |
40 |
28 |
8 |
1 |
35 |
M310x20 |
PV115TA |
110 |
144 |
5.669 |
50 |
35 |
10 |
1.8 |
40 |
M12x22 |
|

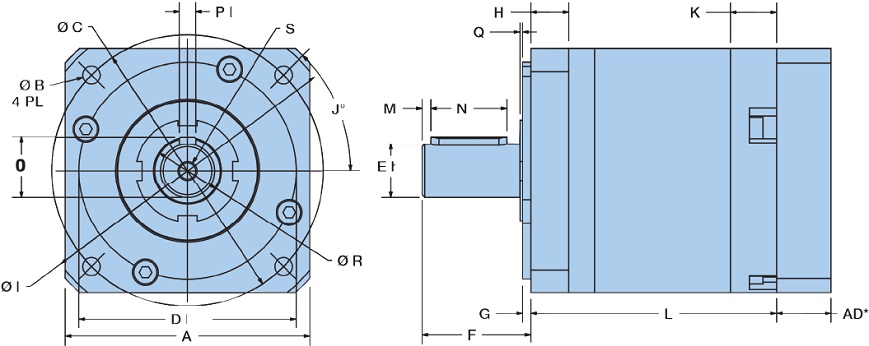

![](../../img/products/PositioningTransmission/Gearhead/PV-2-dim.jpg) |
框架 |
A |
B |
C |
D |
E |
F |
G |
H |
I |
J |
K |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
° |
mm |
PV40FB |
43 |
3.4 |
50 |
35 |
13 |
26 |
3 |
10 |
56 |
45 |
11 |
PV60FB |
62 |
5.5 |
70 |
50 |
16 |
25 |
2.5 |
10.3 |
80 |
45 |
16 |
PV60FN |
62 |
5.5 |
70 |
50 |
14 |
25 |
2.5 |
10.3 |
80 |
45 |
16 |
PV90FB |
90 |
6.5 |
100 |
80 |
20 |
40 |
3 |
14 |
116 |
45 |
17 |
PV115FB |
115 |
8.5 |
130 |
110 |
24 |
50 |
3.5 |
18 |
152 |
45 |
23 |
PV115FN |
115 |
8.5 |
130 |
110 |
25 |
55 |
3.5 |
18 |
152 |
45 |
23 |
|
框架 |
L1 |
L2 |
M |
N |
O |
P |
Q |
R |
S |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
PV40FB |
48.5 |
63 |
2.1 |
16 |
15 |
5 |
2 |
17.831 |
M4x8 |
PV60FB |
71.5 |
91.5 |
3.2 |
16 |
18 |
5 |
1 |
28 |
M5x12 |
PV60FN |
71.5 |
91.5 |
3.2 |
16 |
18 |
5 |
1 |
28 |
M5x12 |
PV90FB |
90.5 |
119 |
3.197 |
28 |
22.5 |
6 |
1 |
38 |
M6x12 |
PV115FB |
114.5 |
148.5 |
4.2 |
40 |
27 |
8 |
1.5 |
40 |
M10x22 |
PV115FN |
114.5 |
148.5 |
4.2 |
40 |
27 |
8 |
1.5 |
40 |
M10x22 |
|
框架 |
A |
B |
C |
D |
E |
F |
G |
H |
J |
K |
in |
in |
in |
in |
in |
in |
in |
in |
° |
in |
PV17FE |
1.693 |
0.138 |
1.724 |
0.866 |
0.25 |
0.984 |
0.059 |
0.236 |
45 |
0.433 |
PV23FE |
2.441 |
0.195 |
2.625 |
1.500 |
0.375 |
1.00 |
0.062 |
0.449 |
45 |
0.630 |
PV34FE |
3.543 |
0.217 |
3.875 |
2.875 |
0.500 |
1.25 |
0.065 |
0.591 |
90 |
0.670 |
PV42FE |
4.528 |
0.281 |
4.949 |
2.187 |
0.625 |
1.5 |
0.094 |
0.787 |
45 |
0.906 |
|
框架 |
L1 |
L2 |
M |
N |
O |
P |
Q |
R |
S |
in |
in |
in |
in |
in |
in |
in |
in |
in |
PV17FE |
1.909 |
2.480 |
- |
- |
- |
- |
0.091 |
0.458 |
- |
PV23FE |
2.382 |
3.169 |
- |
- |
0.360 |
3 |
0.039 |
0.785 |
M5x12 |
PV34FE |
3.320 |
4.154 |
- |
- |
0.553 |
0.125 |
3.175 |
0.984 |
M6x12 |
PV42FE |
4.016 |
5.354 |
0.016 |
0.4 |
0.705 |
0.188 |
4.775 |
- |
M6x20 |
|
典型型号 |
PV115FB-003 , PV115FB-004 , PV115FB-005 , PV115FB-007 , PV115FB-010 , PV115FB-012 , PV115FB-015 , PV115FB-020 , PV115FB-025 , PV115FB-030 , PV115FB-040 , PV115FB-050 , PV115FB-070 , PV115FB-100 , PV115FN-003 , PV115FN-004 , PV115FN-005 , PV115FN-007 , PV115FN-010 , PV115FN-012 , PV115FN-015 , PV115FN-020 , PV115FN-025 , PV115FN-030 , PV115FN-040 , PV115FN-050 , PV115FN-070 , PV115FN-100 , PV115TA-003 , PV115TA-004 , PV115TA-005 , PV115TA-007 , PV115TA-010 , PV115TA-012 , PV115TA-015 , PV115TA-020 , PV115TA-025 , PV115TA-030 , PV115TA-040 , PV115TA-050 , PV115TA-070 , PV115TA-100 , PV115TN-003 , PV115TN-004 , PV115TN-005 , PV115TN-007 , PV115TN-010 , PV115TN-012 , PV115TN-015 , PV115TN-020 , PV115TN-025 , PV115TN-030 , PV115TN-040 , PV115TN-050 , PV115TN-070 , PV115TN-100 , PV17FC-010 , PV17FE-004 , PV17FE-005 , PV17FE-007 , PV17FE-010 , PV17FE-016 , PV17FE-020 , PV17FE-025 , PV17FE-035 , PV17FE-040 , PV17FE-050 , PV17FE-070 , PV17FE-100 , PV23FE-003 , PV23FE-004 , PV23FE-005 , PV23FE-007 , PV23FE-010 , PV23FE-012 , PV23FE-015 , PV23FE-020 , PV23FE-025 , PV23FE-030 , PV23FE-040 , PV23FE-050 , PV23FE-070 , PV23FE-100 , PV34FE-003 , PV34FE-004 , PV34FE-005 , PV34FE-007 , PV34FE-010 , PV34FE-012 , PV34FE-015 , PV34FE-016 , PV34FE-020 , PV34FE-025 , PV34FE-030 , PV34FE-040 , PV34FE-050 , PV34FE-070 , PV34FE-100 , PV40FB-004 , PV40FB-005 , PV40FB-007 , PV40FB-010 , PV40FB-010-001 , PV40FB-016 , PV40FB-020 , PV40FB-025 , PV40FB-035 , PV40FB-040 , PV40FB-050 , PV40FB-070 , PV40FB-100 , PV40TA-004 , PV40TA-005 , PV40TA-007 , PV40TA-010 , PV40TA-016 , PV40TA-020 , PV40TA-025 , PV40TA-035 , PV40TA-040 , PV40TA-050 , PV40TA-070 , PV40TA-100 , PV40TN-004 , PV40TN-005 , PV40TN-007 , PV40TN-010 , PV40TN-016 , PV40TN-020 , PV40TN-025 , PV40TN-035 , PV40TN-040 , PV40TN-050 , PV40TN-070 , PV40TN-100 , PV42FE-003 , PV42FE-004 , PV42FE-005 , PV42FE-007 , PV42FE-010 , PV42FE-012 , PV42FE-015 , PV42FE-020 , PV42FE-025 , PV42FE-030 , PV42FE-040 , PV42FE-050 , PV42FE-070 , PV42FE-100 , PV60FB-003 , PV60FB-004 , PV60FB-005 , PV60FB-007 , PV60FB-010 , PV60FB-012 , PV60FB-015 , PV60FB-020 , PV60FB-025 , PV60FB-030 , PV60FB-040 , PV60FB-050 , PV60FB-070 , PV60FB-100 , PV60FN-003 , PV60FN-004 , PV60FN-005 , PV60FN-007 , PV60FN-010 , PV60FN-012 , PV60FN-015 , PV60FN-020 , PV60FN-025 , PV60FN-030 , PV60FN-040 , PV60FN-100 , PV60TA-003 , PV60TA-004 , PV60TA-005 , PV60TA-007 , PV60TA-010 , PV60TA-015 , PV60TA-016 , PV60TA-020 , PV60TA-025 , PV60TA-030 , PV60TA-040 , PV60TA-050 , PV60TA-070 , PV60TA-100 , PV60TN-003 , PV60TN-004 , PV60TN-005 , PV60TN-007 , PV60TN-010 , PV60TN-012 , PV60TN-015 , PV60TN-020 , PV60TN-025 , PV60TN-040 , PV60TN-050 , PV60TN-070 , PV90FB-003 , PV90FB-004 , PV90FB-005 , PV90FB-007 , PV90FB-010 , PV90FB-012 , PV90FB-015 , PV90FB-016 , PV90FB-020 , PV90FB-025 , PV90FB-030 , PV90FB-035 , PV90FB-040 , PV90FB-050 , PV90FB-070 , PV90FB-100 , PV90TA-003 , PV90TA-004 , PV90TA-005 , PV90TA-007 , PV90TA-010 , PV90TA-015 , PV90TA-020 , PV90TA-025 , PV90TA-030 , PV90TA-040 , PV90TA-050 , PV90TA-070 , PV90TA-100 , PV90TN-003 , PV90TN-005 , PV90TN-007 , PV90TN-010 , PV90TN-015 , PV90TN-020 , PV90TN-025 , PV90TN-040 , PV90TN-050 , PV90TN-100 |
|
|
|
|
